Class D400 Ductile Iron Manhole Cover

DESCRIPTION:

Serial No.	Code	Material	Type	DIMENSIONS(mm)					WEIGHT(kg)

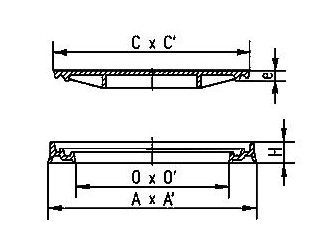

Serial No.	Code	Material	Type	A x A'	O x O'	C x C'	H	e	COVER	FRAME	TOTAL
D-01	D40X40	Ductile iron	Single Sealed, Square	400X400	300X300	336X336	75	69	18	8	26
D-02	D50X50	Ductile iron	Single Sealed, Square	500X500	400X400	436X436	75	69	26	11	37
D-03	D60X60	Ductile iron	Single Sealed, Square	600X600	500X500	536X536	75	69	40	14	54
D-04	D70X70	Ductile iron	Single Sealed, Square	700X700	600X600	636X636	75	69	60	17	77
D-05	D80X80	Ductile iron	Single Sealed, Square	800X800	700X700	738X738	80	74	86	20	106
D-06	D60X80	Ductile iron	Single Sealed, Square	600X800	500X700	536X736	75	69	62	16	78
D-07	450X450	Ductile iron	Double Triangular	600x600	450x450	450x450	100	80	19*2	22	60
D-08	600X450	Ductile iron	Double Triangular	750x600	600x450	600x450	100	80	26*2	29	81
D-09	600X600	Ductile iron	Double Triangular	750x750	600x600	600x600	100	80	29*2	24	82
D-10	600X600-2	Ductile iron	Double Triangular	750x750	600x600	600x600	150	80	29*2	39	97
D-11	600X600-3	Ductile iron	Double Triangular	818x818	600x600	600x600	150	80	29*2	41	99
D-12	675X675	Ductile iron	Double Triangular	825x825	675x675	675x675	100	80	36*2	32	104
D-13	675X675-2	Ductile iron	Double Triangular	825x825	675x675	675x675	150	125	36*2	47	119
D-14	675X675-3	Ductile iron	Double Triangular	893x893	675x675	675x675	150	125	36*2	50	122
D-15	750X600	Ductile iron	Double Triangular	900x750	750x600	750x600	100	80	43*2	34	120
D-16	750X750	Ductile iron	Double Triangular	900x900	750x750	750x750	100	80	50*2	40	140
D-17	900X600	Ductile iron	Double Triangular	1050x750	900x600	900x600	100	80	54*2	48	156
D-18	900X900	Ductile iron	Double Triangular	1050x1050	900x900	900x900	150	80	100*2	65	265
D-19	1220X675	Ductile iron	Double Triangular	1370*825	1220x675	1214x672	100	80	38*4	58	210
D-20	1220X675-2	Ductile iron	Double Triangular	1370x825	1220x675	1214x672	150	80	38*4	74	226
D-21	1220X675-3	Ductile iron	Double Triangular	1438x893	1220x675	1214x672	150	80	38*4	74	226
