Casting & Forging > Manhole cover > Class C250 Ductile Iron Manhole Cover

Class C250 Ductile Iron Manhole Cover

DESCRIPTION:

Serial No.	Code	Material	Type	DIMENSIONS(mm)					WEIGHT(kg)
Serial No.	Code	Material	Type

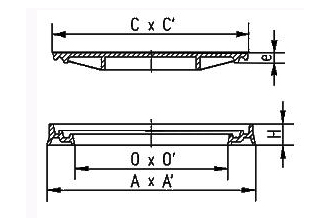

				A x A'	O x O'	C x C'	H	e	COVER	FRAME	TOTAL
C-01	C4040	Ductile iron	Single Sealed, Square	400X400	300X300	336X336	45	39	13	6	19
C-02	C5050	Ductile iron	Single Sealed, Square	500X500	400X400	436X436	50	44	21	8	29
C-03	C6060	Ductile iron	Single Sealed, Square	600X600	500X500	536X536	55	49	32	11	43
C-04	C7070	Ductile iron	Single Sealed, Square	700X700	600X600	636X636	60	54	46	14	60
C-05	C8080	Ductile iron	Single Sealed, Square	800X800	700X700	738X738	65	59	57	17	74
C-06	C6070	Ductile iron	Single Sealed, Square	600X700	500X600	536X636	60	54	38	12	50
C-07	C557R	Ductile iron	Round		dia557		75		28	13	41
C-08	YSC450X450	Ductile iron	Single Sealed, Square	542x542	450x450	490x490	75	69	34	15	49
C-09	YSC600X450	Ductile iron	Single Sealed, Square	692X542	600x450	640X490	75	69	45	15	60
C-10	YSC600X600	Ductile iron	Single Sealed, Square	692X692	600x600	640X640	75	69	54	16	70
C-11	YSC750X600	Ductile iron	Single Sealed, Square	842X692	750x600	790x640	75	69	70	19	89
C-12	YSC750X750	Ductile iron	Single Sealed, Square	842x842	750x750	790x790	75	69	93	21	114
C-13	YSBS900X600	Ductile iron	Single Sealed, Square	992X692	900x600	940x640	75	69	93	21	114
C-14	YSC900X900	Ductile iron	Single Sealed, Square	992x992	900x900	940x940	75	69	131	29	160
C-15	MD750	Ductile iron	Round	Ø750	Ø600	Ø660	100	18	30.5	20.5	51
C-16	MD780	Ductile iron	Round	Ø780	Ø600	Ø660	100	18	30.5	28.5	60
