Class A15 Cast Iron Manhole Cover

DESCRIPTION:

Serial No.	Code	Material	Material	DIMENSIONS(mm)					WEIGHT(kg)

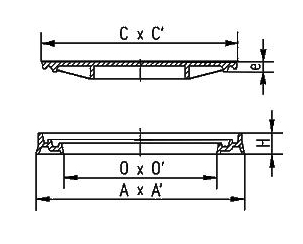

Serial No.	Code	Material	Material	A x A'	O x O'	C x C'	H	e	COVER	FRAME	TOTAL
A-01	A25x25DS	Grey iron	Double Sealed, Square	250X250	170X170	232X232	30	20	3.2	2.8	6
A-02	A25x35DS	Grey iron	Double Sealed, Square	250X350	170X270	232X332	30	20	3.5	3	6.5
A-03	A30x30DS	Grey iron	Double Sealed, Square	300X300	220X220	282X282	30	20	4	3	7
A-04	A30x40DS	Grey iron	Double Sealed, Square	300X400	220X320	282X382	30	20	5.5	3.5	9
A-05	A35x45DS	Grey iron	Double Sealed, Square	350X450	270X370	332X432	30	20	7	6	13
A-06	A40x40DS	Grey iron	Double Sealed, Square	400X400	320X320	382X382	30	20	7	6	13
A-07	A40x50DS	Grey iron	Double Sealed, Square	400X500	320X420	382X482	35	20	9	6	15
A-08	A50x50DS	Grey iron	Double Sealed, Square	500X500	420X420	482X482	35	20	13.5	6.5	20
A-09	A50x60DS	Grey iron	Double Sealed, Square	500X600	420X520	482X582	40	20	16	7	23
A-10	A60x60DS	Grey iron	Double Sealed, Square	600X600	520X520	582X582	40	20	21.5	7.5	29
A-11	A60x70DS	Grey iron	Double Sealed, Square	600X700	520X620	582X682	45	20	28	8	36
A-12	A70x70DS	Grey iron	Double Sealed, Square	700X700	620X620	682X682	50	20	35	11	46
A-13	A46x46DS	Grey iron	Double Sealed, Square	460X460	338X338	442X442	38	18			23
A-14	A70x55DS	Grey iron	Double Sealed, Square	700X550	620X450	682X532	40	20			32
A-15	A24x33DS	Grey iron	Double Sealed, Square	240X330	160X250	222X312	30	20
A-16	A30x30SS	Grey iron	Single Sealed, Square	300X300	264X264	284X284	16	11			5
